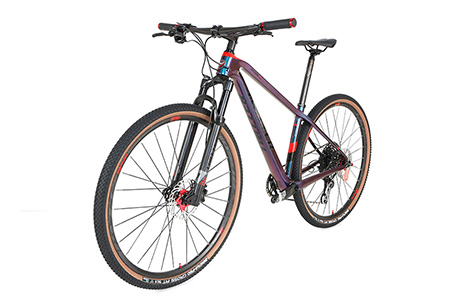

WARRIOR-PRO-22/33S

Carbon fiber mountain bike
*High modulus carbon fiber frame
*SHIMANO-XT shifting system
27.5 inch, 29 inch wheel diameter optional

    Configuration
Wheel Size27.5" / 29"
Frame Height27.5" Wheel:14.5" / 15.5" / 16.5" / 17.5" / 19.5"  【  29" Wheel:14" / 15" / 16" / 17" / 19"  】
Bike ColorClaret / Black / Yellow / Ti / Blue / Red / BlackClaret / WhiteClaret
Net Weight≈11.3kg≈11.1kg≈10.8kg
ConfRevXT/M8000-22S/33S-AXT/M8000-22S/33S-BXT/M8000-22S/33S-DT
FrameWARRIOR-PRO,XC,carbon T900 3K,Inner cables,Glittering&,Cut+UV laser colorful raised Logo+reflective decals
HandlebarsetsTW Alu alloy,Matte&Colorful water decals,Hb31.8×680,Sp31.6×350mmTW Carbon 3K,Matte&colorful water decals,Hb31.8×720,St90*(-250)
ForkTW MgAl alloy,Air suspension,Remote,Colorful Decals,27.5"(29")DT SWISS-OPM.ODL,Air suspension,Thro-Axle 15mm,Remote
Derailleur LeverSHIMANO XT/M8000-22S(33S)SHIMANO XT/M8000-22S(33S)SHIMANO XT/M8000-22S(33S)
Front derailleurSHIMANO XT/M8000
SHIMANO XT/M8000SHIMANO XT/M8000
Rear derailleurSHIMANO XT/M8000SHIMANO XT/M8000SHIMANO XT/M8000
CranksetsProwheel,hollow,CLAW28-38T(MPL22-30-40T)SHIMANO XT/M8000,24-34T(22-30-40T)SHIMANO XT/M8000,24-34T(22-30-40T)
CassettesSUGEK-11S,11-40TSHIMANO XT/M8000-11S,11-42TSHIMANO XT/M8000-11S,11-42T
ChainYBN-11S,with Urltra-Light black strengthenSHIMANO HG700-11SSHIMANO HG700-11S
BrakeSHIMANO MT200 hydraulic+PRO floating discSHIMANO XT/M8000 hydraulic+PRO floating discSHIMANO XT/M8000 hydraulic+PRO floating disc
HubsTW Alu in Carbon 3K,4-sealed Bearings,Slotted,28Holes,Colorful water DecalsDT SWISS-X1900spline, Original assembly

Alu alloy, 4-sealed Bearings,28Holes

Thro-Axle(F15*100 R12*142mm)

RimRS Alu alloy CNC,Double wall with rivets,Colorful decals,27.5"(29")
SpokeSHUNJIU,Flat 14G
TireMAXXIS-PACE, 27.5"(29")×1.95Continental,RACE KING 27.5"*2.0(Schwalbe 29")
GripsContinental,RACE KING 27.5"*2.0(Schwalbe 29")
SaddleTW Comfortable and Lightweight for MTB
PedalsRS Alu alloy CNC with sealed Bearings for MTB
CablesJAGWIRE,Internal cables,External cables

The adjustment of individual components due to batches is subject to change without prior notice. The factory confirmation is subject to change. At the same time, we reserve the right to optimize the information on the website to ensure that TWITTER products are consistent with the actual products.

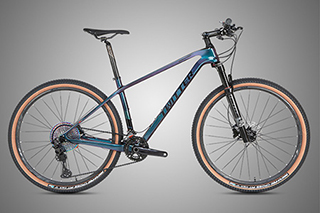

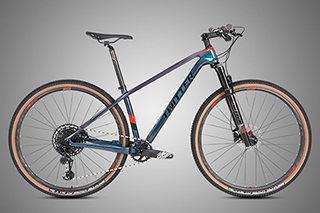

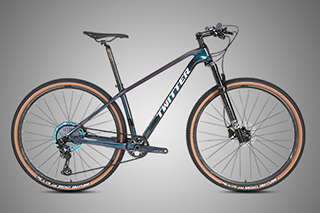

     ConfRev Photo
XT/M8000-22S/33S-AXT/M8000-22S/33S-BXT/M8000-22S/33S-DT

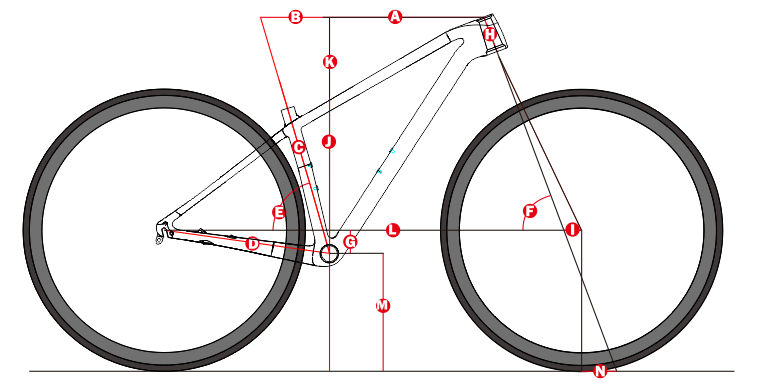

    Frame Geometry
Designed specifically for the geometrical design of the competition, the racer has plenty of time to face the roads of cruising, climbing, rushing and other tracks!
Measuring Unit:mm (27.5" wheel diameter)
SizeSTTTRCHASABBHTForkOffsetReachStackFC
15.5"39457242770.573.54510048544399582.4638.3
16.5"42058242771734510548544402589.2637.3
17.5"44459242771734511048544410.3594.8648.6
19.5"49460242771734511548544418.6598.6662.4
   Key Technology

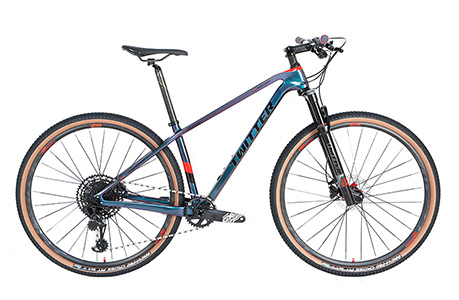

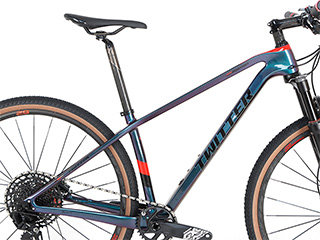

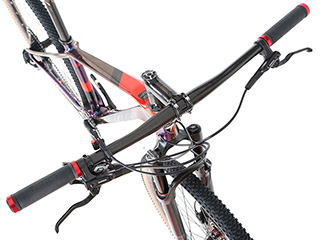

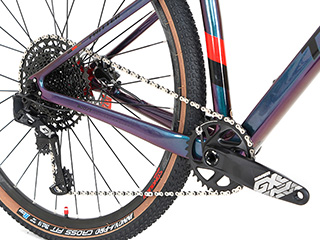

 Different Angles Show



WARRIOR-PRO-22 speed 33 speed XT competition grade carbon fiber mountain bike
