| Wheel Size | 700C |
| Frame Height | 47CM / 49CM / 51CM |
| Bike Color | BlackRed / WhiteRed / BlackTi / BlackClaret / BlackYellow / BlackBlue |
| Net Weight | ≈7.6kg
|
| ConfRev | SHIMANO - 105/5800-22S-A
|
Frame
| TW,FIXIE,carbon T800,Aero-racing,Inner cable,Glittering&Cut,UV laser colorful decals |
| Handlebarsets | TW carbon 3K handlebar31.8*400mm&Stem80mm,UV laser colorful water decals,Carbon seat post
|
| Fork | TW,ultra-light carbon T800,700C,UV laser colorful water decals |
| Derailleur Lever | None
|
| Front Derailleur | None
|
| Rear derailleur | None
|
| Cranksets | Prowheel,SOLID Alu alloy Hollow,48T
|
| Cassettes | 17T, single fixed-Gear(with 17T single free-Gear)
|
| Chain | YBN single speed,Strengthen Blackening
|
| Brake | WINZIP Alu alloy road C-clamper,RS brake Lever(with front brake Lever)
|
| Hubs | RS Alu alloy,2-sealed Bearings,Threaded,Front 24-Rear 24Holes
|
| Rim | RS ultra-light alloy AL7005,Double wall,Matte,W23×H40mm×700C
|
| Spoke | SHUNJIU,Circular 14G,Bend-head
|
| Tire | MAXXIS-SIERRA, 700C×23C
|
| Belt | Belt with Woven and Comfortable |
| Saddle | TW Comfortable and Lightweight for Road
|
| Pedals | SYUN alloy,for FIXIE,with Protector |
| Cables | JAGWIRE,Internal cables,External cables |
The adjustment of individual components due to batches is subject to change without prior notice. The factory confirmation is subject to change. At the same time, we reserve the right to optimize the information on the website to ensure that TWITTER products are consistent with the actual products.
 |  |  |
| Broken wind structure design, high modulus carbon fiber frame set, all internal routing technology | High modulus carbon fiber 3K professional group | Night light, colorful effect, colorful and dazzling |
| The professional geometric structure optimization design allows the rider to easily face the challenges of cruising, climbing and breaking the line; the balance, stiff and lightweight body, the core guarantees excellent riding quality! |
|

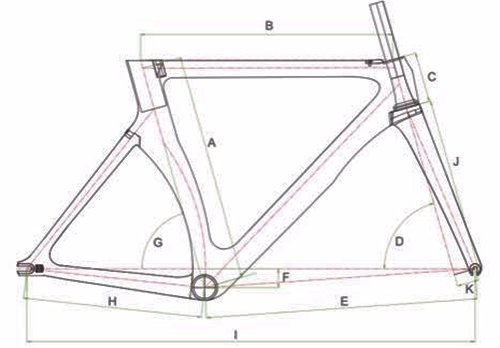

| Measuring Unit：mm |
| Size | A | B | C
| D | E | F | G | H | I | J | K
|
| 470 | 469.5 | 510 | 95 | 73.5 | 558.6 | 40 | 75 | 375 | 930 | 365 | 45 |
| 490 | 489 | 530 | 105 | 74 | 570.5 | 40 | 74.5 | 375 | 941.9 | 365 | 45 |
| 510 | 509
| 550 | 123 | 74 | 586.2
| 40 | 74 | 375 | 957.5 | 365 | 45 |

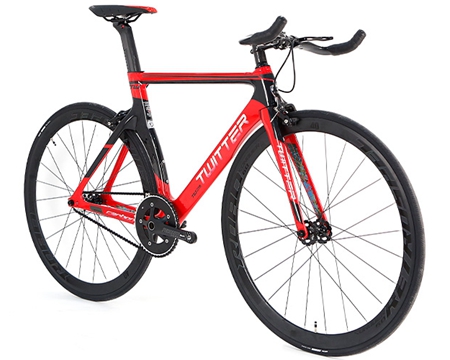

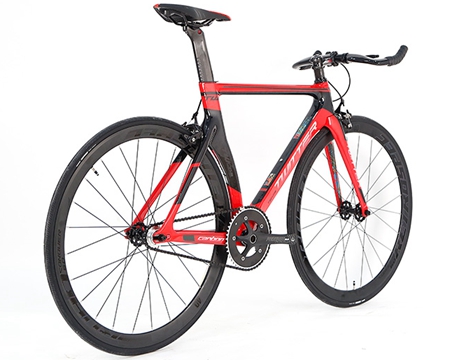

TW-CBR carbon fiber dead fly road bike
